Mobile Automatic Channel Baler

Mobile Automatic Channel Baler

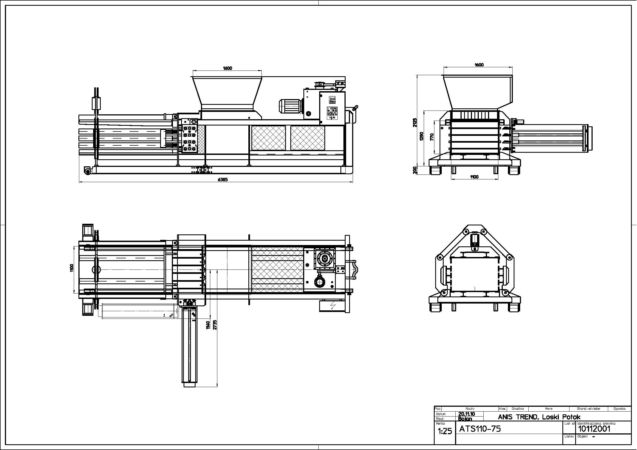

ATS110-75 Mobile


The ATS Mobile is a specifically adapted version of our standard balers it comes with all the features you’d expect but in a shortened package suitable for transportation by Hooklift lorry.

This type baler is designed for baling waste paper, smaller cardboard packaging, plastics, MSW etc..

  • Operation is simple, offload the baler and plug in the power.
  • Press chamber is made of wear-resistant metal
  • Automatically operated machine.
  • Feeding can be controlled by a photocells.
  • Bale length is controlled by the length control wheel or by No. of strokes
  • 4x horizontal bale tie using steel wire..


Baler Specification          Automatic or Semi-Automatic Mobile Baler

 Mobile Baler                      Transportation by Hook Lift lorry


Electrical Power                 11kw to 22kw

Ram Force                         50Ton

Bale Size                           1100 x 750 x variable length 700 – 1500mm

Feed opening                     1200 x 1040mm

Hopper Opening                 1600 x 1600mm flared loading hopper

Tie System                        Horizontal 4 steel wire  (3.2mm max diameter)

Wire Coils                          8off 45kgs

Baler Weight                      9000kgs

Warranty                           12 months

Safety Standards               CE Marked
