Factory Refurbished ATS 75.75 60Ton Autobaler

Factory Refurbished ATS 75.75  60Ton Autobaler

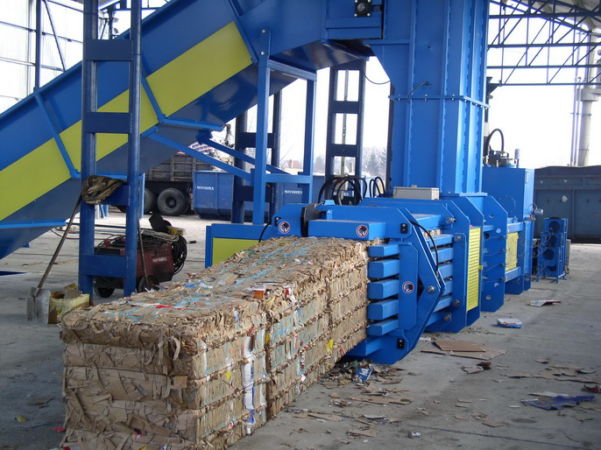

031222 ATS75-75-Novimpex 002_resize



Available Now, (A Rare Opportunity). ATS 75.75 Autobaler + Infloor Conveyor.

Ideally suited to recycling companies, manufacturing plants, printers & convertors, warehouses and distribution, manufacturers of alum-foil and packaging, and document shredding companies.

This type of baler is designed for baling waste paper, smaller cardboard packaging, plastics, MSW etc.

  • Feeding and conveyors are controlled by photocells in the hopper.
  • Bale length is controlled by the length control wheel and/or by the number of strokes.
  • Bales can be tied either in 4x horizontal.
  • Ram Chamber made from wear-resistant Hardox 450  metal.
  • There is a choice of single material and multi material (up to 20) control system, including proportional pressure control. The operator has the option of selecting any of the pre-set programmes for automated operation or if required these setting can be adjusted and stored manually.

Advantages:- High speed and small space required, wide feed hopper and better shearing capacity.



Infloor Chain driven Conveyor (1300mm wide) also availble to suit.







Technical specifications ATS 75.75

Press force Tonnes Max. 58
Specific pressure kg/cm2 10.4
Power kW 30 / 22
Bale size (WxH)

(Length)

cm 75 x 77

50 - 220

Feed opening cm 130 x 70
Cycle time s 13 / 21
Capacity 50 kg/m3 t/h 5 / 3
Auto-tier   4x horizont.


Technical Sketch

ats-75-75-technicalSketch-cropped

Options:

See also:
