ATS 75.75

ATS 75.75

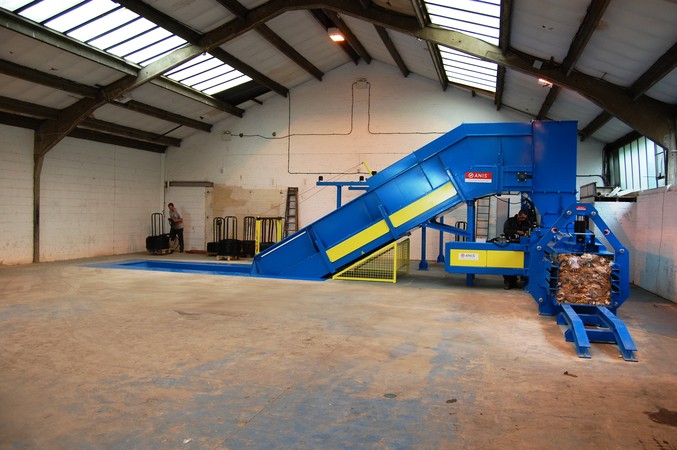

DSC_0570



Ideally suited to recycling companies, manufacturing plants, printers & convertors, warehouses and distribution, manufacturers of alum-foil and packaging.

This type of baler is designed for baling waste paper, smaller cardboard packaging, plastics, MSW etc.

  • Feeding and conveyors are controlled by photocells or laser in the hopper.
  • Bale length is controlled by the length control wheel and/or by the number of strokes.
  • Bales can be tied either in 4x horizontal or 4x vertical direction.
  • Press chamber is made of wear-resistant sheet metal.
  • This shearing baler can be equipped with two side flaps for use with baling paper, PET, etc.
  • There is a choice of single material and multi material (up to 20) control system, including proportional pressure control. The operator has the option of selecting any of the pre-set programmes for automated operation or if required these setting can be adjusted and stored manually.

Advantages:- High speed and small space required, wide feed hopper and better shearing capacity.







Technical specifications ATS 75.75

Press force Tonnes Max. 91 Max. 74 Max. 58 Max. 45 Max. 36
Specific pressure kg/cm2 16.2 13.1 10.4 7.9 6.3
Power kW 60 / 30 45/ 22 30 / 22 30 / 22 22 / 11
Bale size (WxH)

(Length)

cm 75 x 77

50 - 220

75 x 77

50 - 220

75 x 77

50 - 220

75 x 77

50 - 220

75 x 77

50 - 220

Feed opening cm 130 x 70 130 x 70 130 x 70 130 x 70 130 x 70
Cycle time s 11 / 21 13 / 21 13 / 21 10 / 17 13 / 26
Capacity 50 kg/m3 t/h 6.5 / 3.5 5 / 3 5 / 3 4.5/ 3 4.5/ 3
Auto-tier   4x horizont.
(5x vertical)
4x horizont.
(5x vertical)
4x horizont.
(5x vertical)
4x horizont.
(5x vertical)
4x horizont.
(5x vertical)

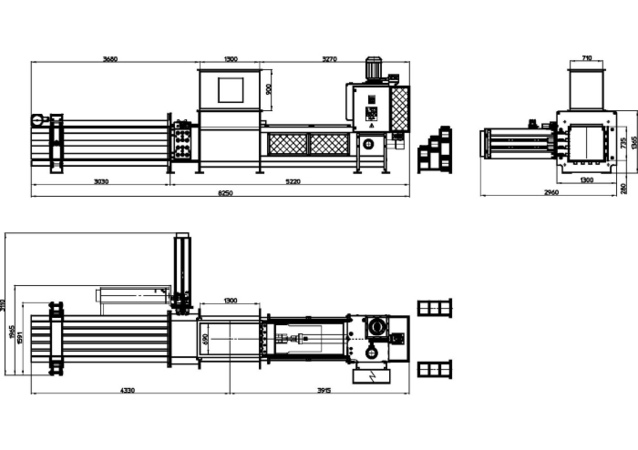

Technical Sketch

ats-75-75-technicalSketch-cropped

Options:
