ATS 75.110

ATS 75.110

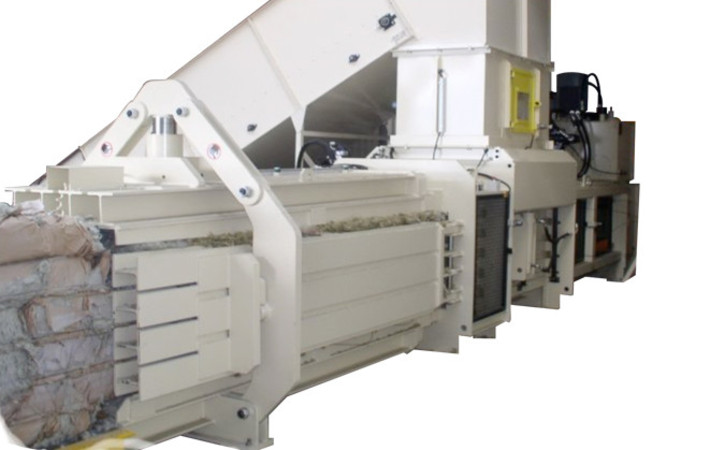

ATS 75-110-new



Ideally suited to Manufacturing Plants, printers, convertors, warehouses & distribution, manufacturers of alum-foil and packaging.

This type of baler is designed for baling corrugated trim, newspapers, magazines, cardboard, plastic, packaging, alum-foil, thin alum-sheet and cans.

  • The ram chamber is deep and narrow providing efficient shearing of these types of material.
  • Feeding and conveyors are controlled by photocells in the hopper.
  • Feed hopper size options of 160 x 70cm or 130 x 70cm and with the addition of pre-press flaps this increases the width to 80cm.
  • The bale length is controlled by the length control wheel and/or by the number of strokes.
  • Bales are tied in 5x horizontal direction.
  • There is a choice of single material control system or multi-material (up to 20) including proportional pressure control. The operator has the option of selecting any of the pre-set programmes for automated operation or if required these settings can be adjusted and stored manually.
  • Press chamber can be made of wear-resistant sheet metal.







 Technical specifications ATS 75.110

Press force Tonnes Max. 142 Max. 115 Max. 91 Max. 74 Max. 58 Max. 45
Specific pressure kg/cm2 17.2 14 11 8.9 7.1 5.4
Power kW 90 / 60 90 / 45 60 / 45 60 / 30 45 / 22 30 / 22
Bale size (WxH)

(Length)

cm 110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

110 x 75

50 - 220

Feed opening cm 160 x 104 160 x 104 160 x 104 160 x 104 160 x 104 160 x 104
Cycle time s 13 / 21 11 / 21 13 / 17 11 / 22 11 / 26 13 / 21
Capacity 50 kg/m3 t/h 10 / 6.5 9.5 / 6 9.5 / 6 11 / 5.5 10.5 / 5.5 9 / 5.5
Auto-tier   5x horizont.  5x horizont. 5x horizont. 5x horizont. 5x horizont.  5x horizont.

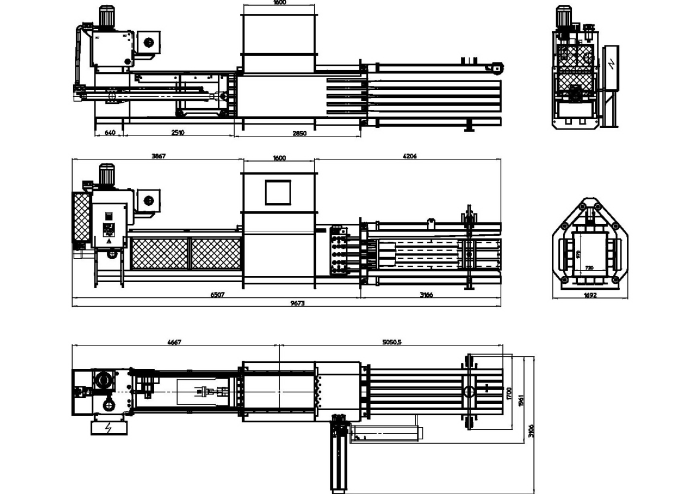

Technical Sketch

ats-75-100-technicalSketch

Options:
