ATS 110.110

ATS 110.110

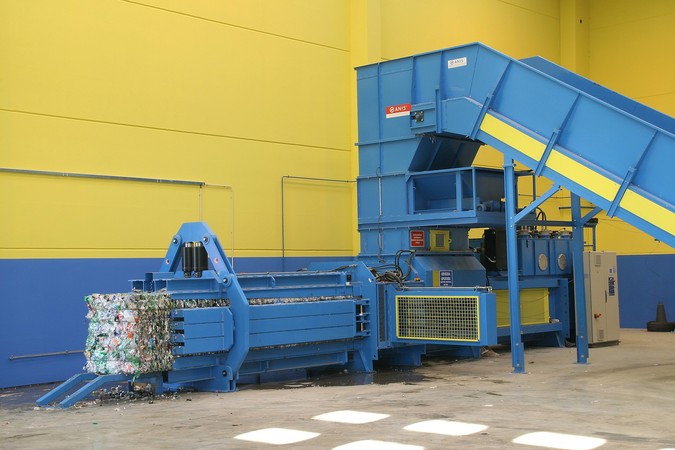

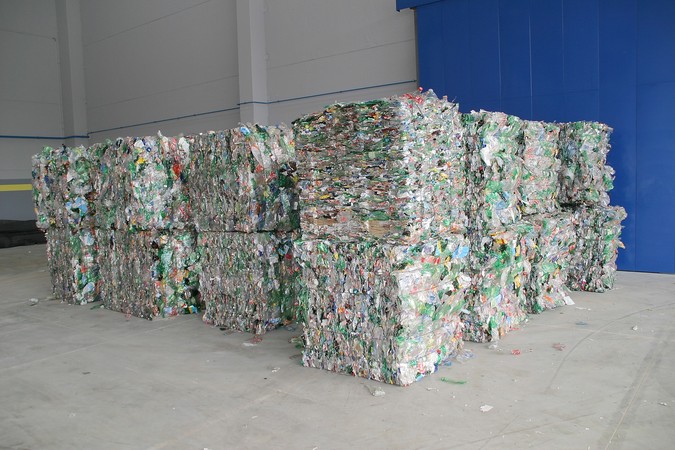

Bottle Baler 1



Ideally suited for Waste Transfer Stations, MRF's & Waste Paper companies.

This is a large sized baler designed for baling waste paper, plastic packaging, cardboard packaging, MSW, etc.

  • Feeding can be controlled by photocells or laser in the hopper.
  • Bale length is controlled by the length control wheel and/or by the number of strokes
  • Bales can be tied either in 5x horizontal or 5x vertical direction.
  • The press chamber is made of wear-resistant sheet metal.
  • This shearing baler can be equipped with two side flaps for better feed control.

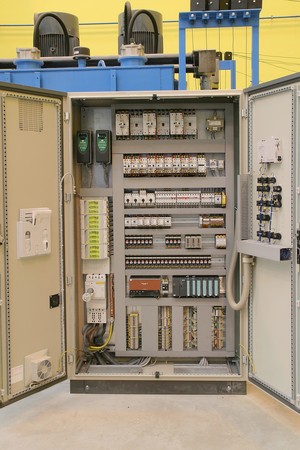

  • There is a choice of single material control system or multi-material (up to 20) including proportional pressure control. Operator has the option of selecting any of the pre-set programmes for automated operation or if required these setting can be adjusted and stored manually.

Advantages:- High speed, small space required, wide feed hopper and better shearing.







Technical specifications ATS 110.110

Press force Tonnes Max. 205 Max. 142 Max. 115 Max. 91
Specific pressure kg/cm2 16.2 11.8 9.5 7.5
Power kW 180 / 135 135 / 90 90 / 60 60 / 45
Bale size (WxH)

(Length)

cm 110 x 110

50 - 220

110 x 110

50 - 220

110 x 110

50 - 220

110 x 110

50 - 220

Feed opening cm 190 x 104 190 x 104 190 x 104 190 x 104
Cycle time s 12 / 18 11 / 17 14 / 21 13 / 21
Capacity 50 kg/m3 t/h 20 / 13 18.5 / 11.5 17 / 11 17 / 11
Auto-tier   5x horizont.
(5x vertical)
5x horizont.
(5x vertical)
5x horizont.
(5x vertical)
5x horizont.
(5x vertical)

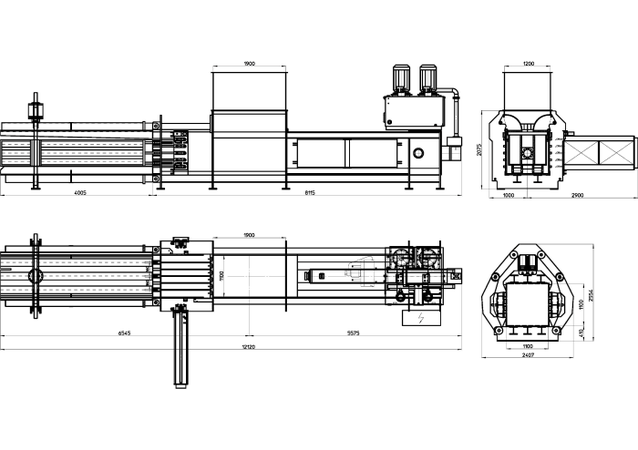

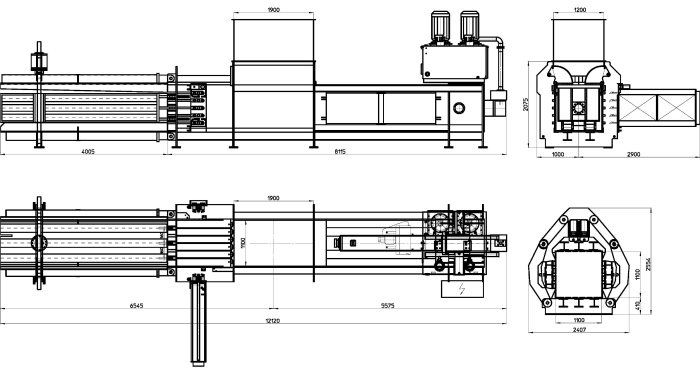

Technical Sketch

ats-110-110-technicalSketch-croped

Options:
